Forwin Cubicle Rail

Code: VTR-H0701

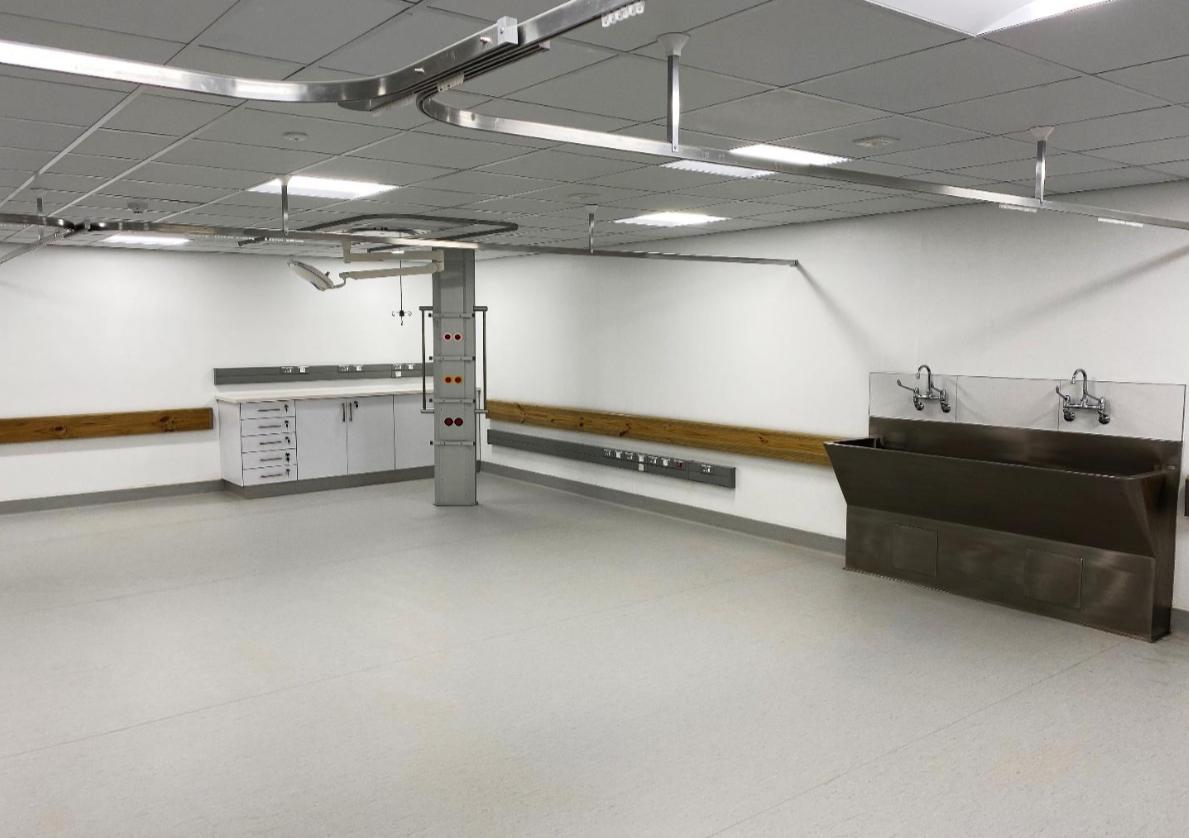

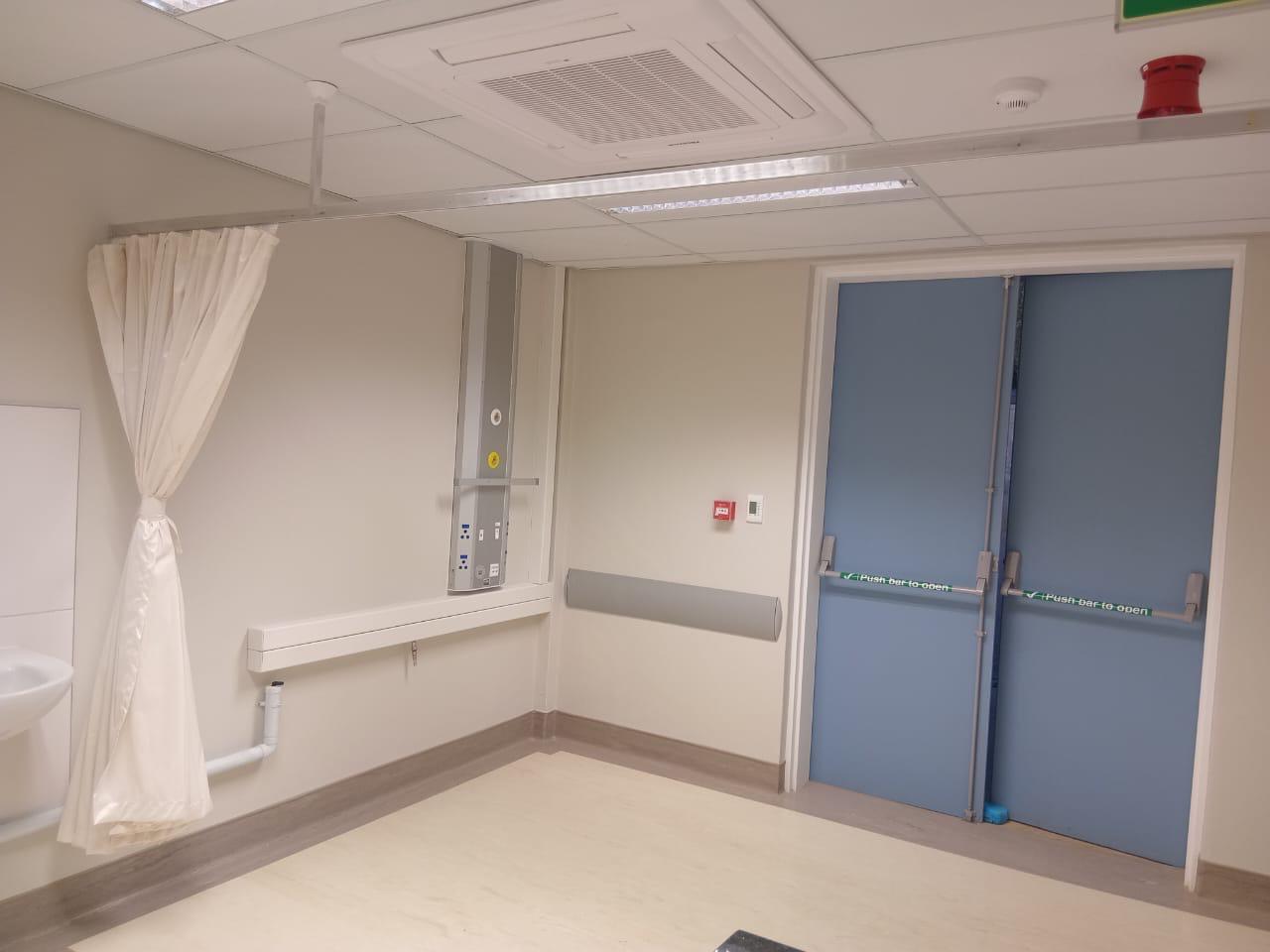

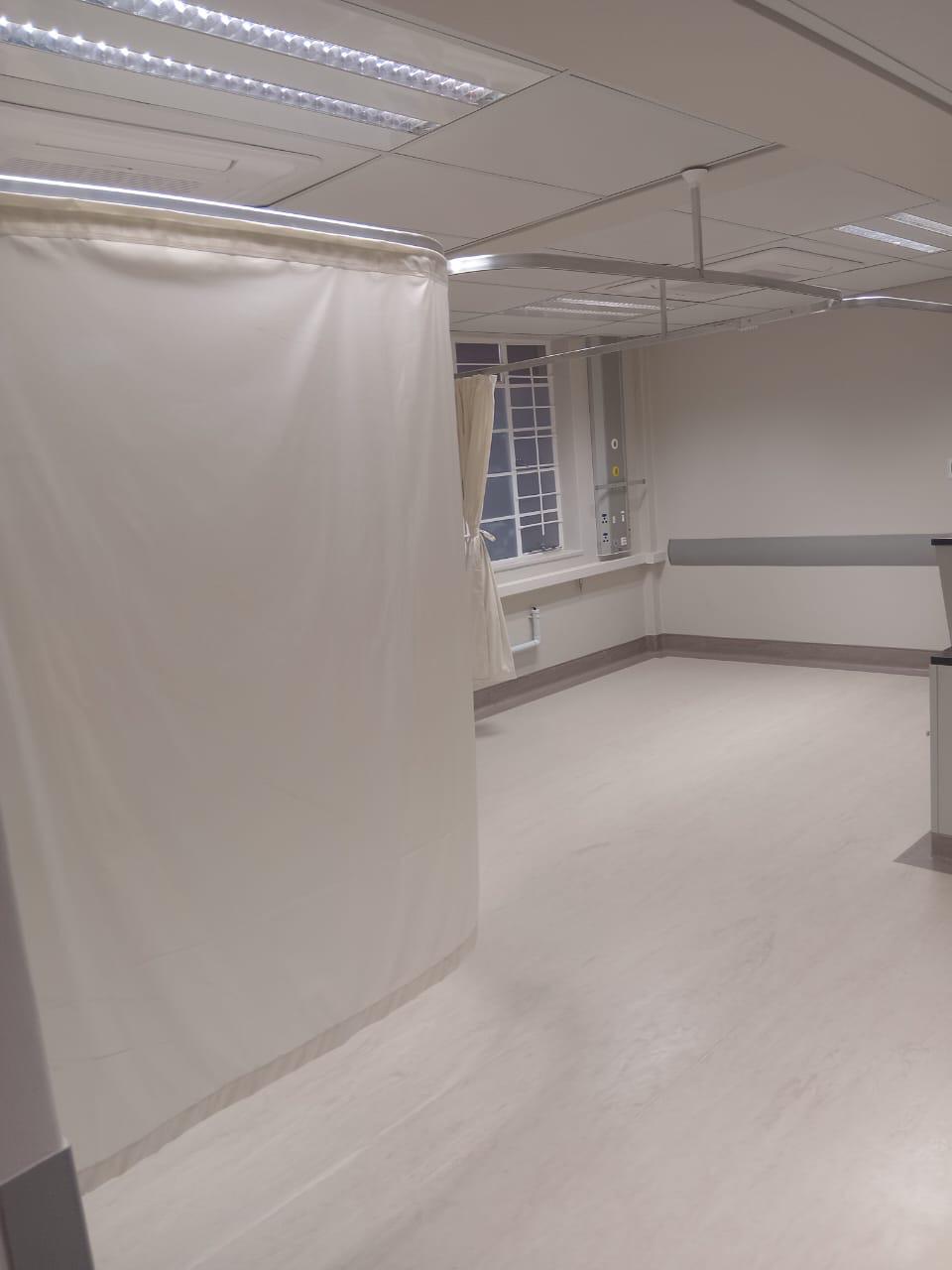

Forwin Cubicle Rail is a suspended rail system preferred by public sector hospitals.

Features

• Light flow above rails allows for general lighting between cubicles. No need for individual bed lights (Suspended rail).
• Air flow above rails. No individual air conditioning required as well as flow for infection control.
• A built-in safety feature is a unique and exclusive “Break-Away” mounting bracket for the fixing detail. Should, for some reason, a patient slip and grab onto a curtain, the Break-Away feature will dislodge itself from its fixing, protecting the ceiling from damage, or worse. Only the Rail would need replacing.

Specifications

• T4 Grade Aluminium.
• Natural Anodised Satin Finish, or Mill - Polished Anti-Bacterial S/S Finish.
• Dimensions: H - 17,2mm x W – 32,5mm.
• Weight: 160g / 1000mm.
• Load Weight: 80kg / 1200mm.
• 16 Double Wheeled Runners per Metre.
• All metal brackets and end stops - no breakable plastic components.
• Bespoke bending of rails to suit application.
• 100% Locally manufactured in RSA and full parts and service back up available.
• 100% Recyclable.
